Layered, beautiful details
The new 606 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.

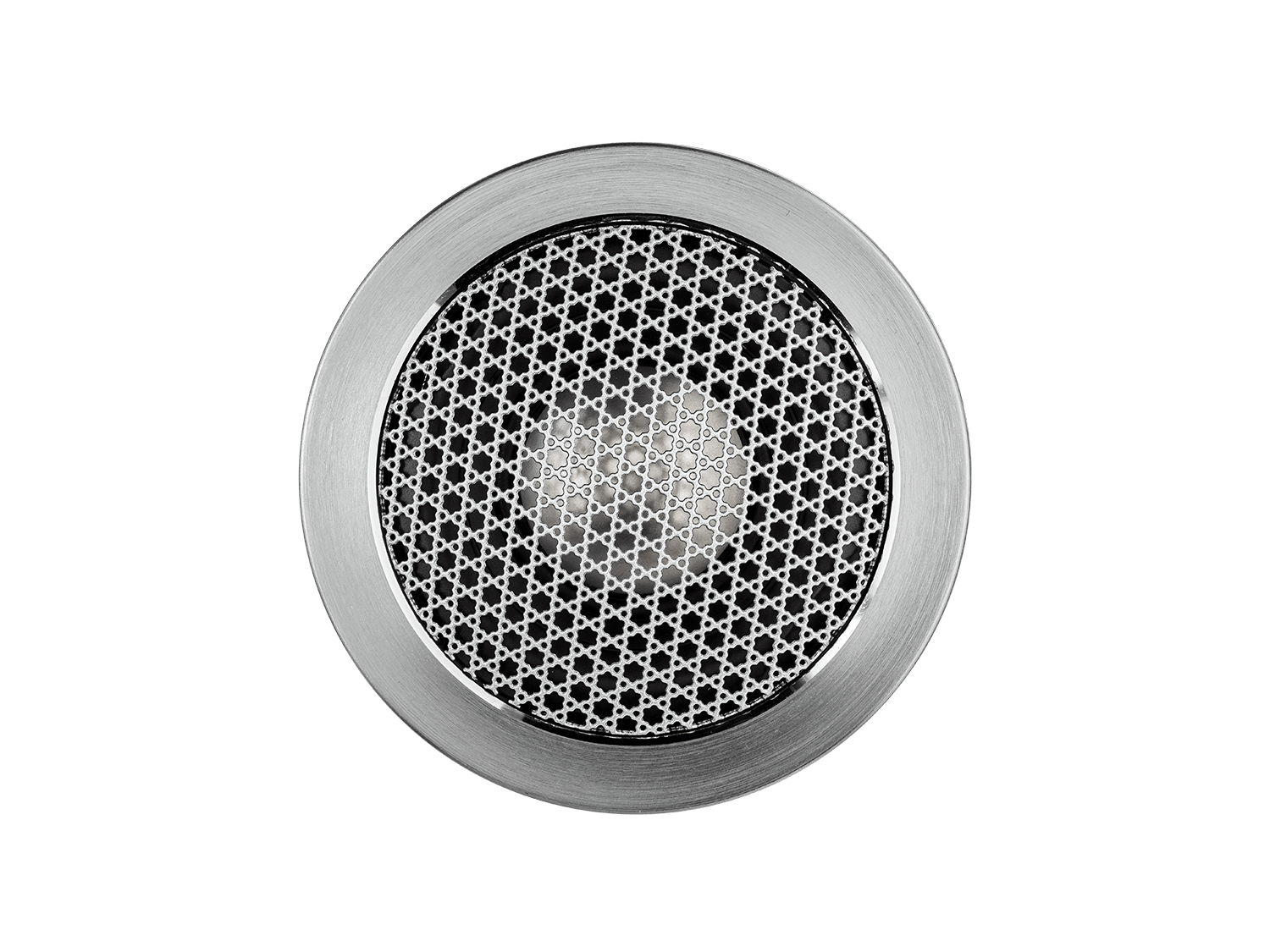

Truly amazing sound
606 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism is exceptional.

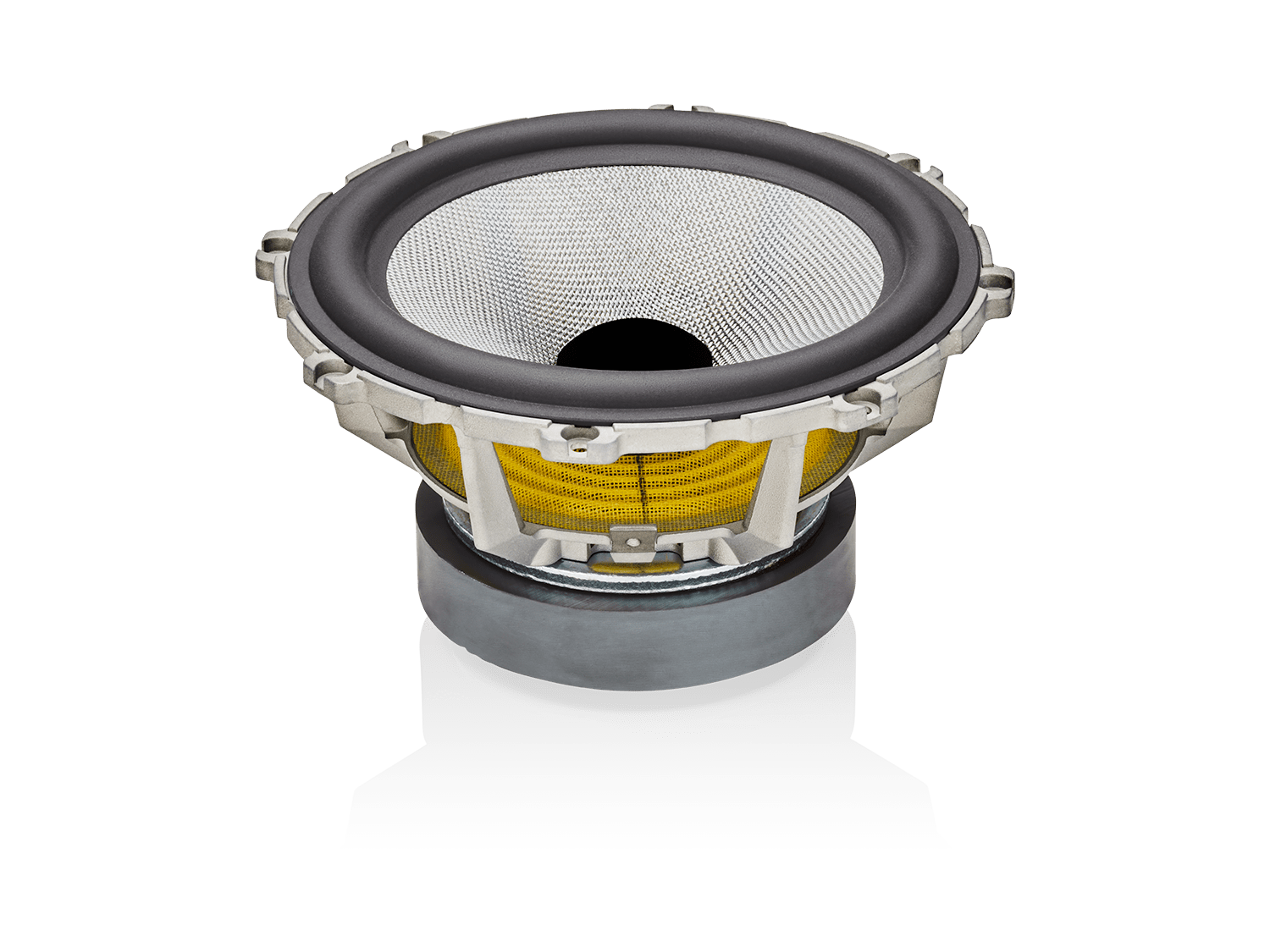

Precision and transparency
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. With 606 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency.
Upgraded speaker terminals
Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
Specifications
-
Net weight
7.05kg (15.5 lb)
Dimensions
Height: 344 mm (13.6 in) cabinet only
Width: 189 mm (7.4 in) cabinet only
Depth: 300 mm (11.8 in) cabinet only
328 mm (12.9 in) including grille and terminals -
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range
-6dB 40Hz - 33kHz
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz<0.5% 150Hz - 12kHz
Nominal impedance
8Ω (minimum 3.7Ω)
Recommended amplifier power
30W - 120W into 8Ω on unclipped programme
Technical features
Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrangeFlowport™
Description
2-way vented-box system
Max recommended cable impedance
0.1Ω
Frequency response (+/-3dB from reference axis)
52Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m)
88dB
-
Cabinet finishes
Black
White
Oak
Grille finishes
Black (Black)
Grey (White and Oak)
