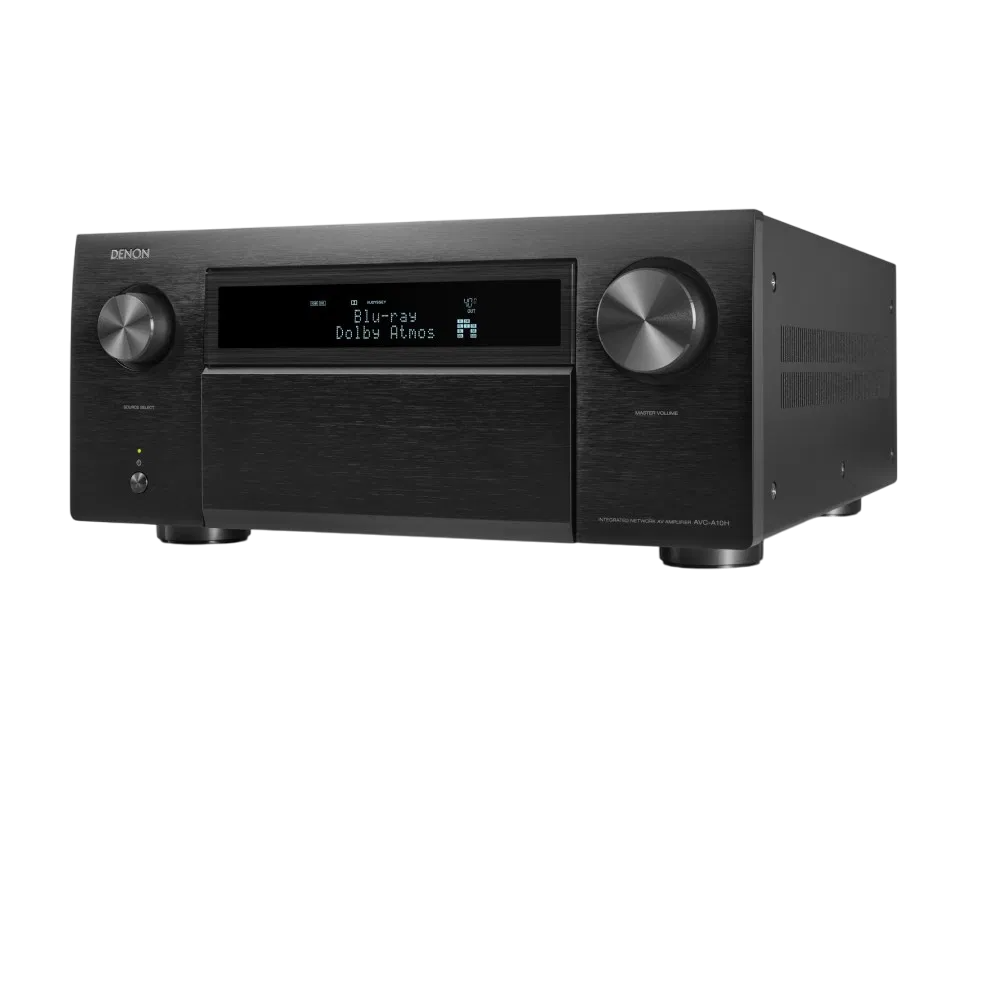

Denon AVC-A10H AV Receiver
Power your dream sound system with the Denon AVC-A10H. Featuring a robust 13.4-channel amplifier, it drives up to 13 speakers and 4 subwoofers, delivering 150 watts per channel. Enjoy immersive formats like Dolby Atmos, DTS:X, IMAX Enhanced, and AURO-3D; stunning 8K visuals; and audiophile-quality sound. Crafted in Japan for unparalleled excellence.
13.4 channel amplifier
8K Ultra HD
HEOS Built-in
150 watts per channel
Dolby Atmos, DTS:X Pro, IMAX Enhanced
Dirac Live Ready
Delivering audio with clarity and precision
-
The AVC-A10Hâs 13-channel monolithic amplifier delivers 150 watts per channel. As is typical in high-end amplifier designs, each channel is built on its own PCB to minimize crosstalk and distortion.
-
13.4-channel processing powers systems up to 7.4.6 or 9.4.4 speaker configurations with support for Dolby Atmos, DTS:X Pro, IMAX Enhanced, and AURO-3D.
-
All seven HDMI inputs support the highest resolution and fastest frame rates available. The AVC-A10H can pass-through signals up to 8K/60Hz or 4K/120Hz frame rates in gaming scenarios.
-
With the latest HDMI specification, each HDMI port supports 4K/120Hz which means your video frame rate increases so you can always see who is coming around the corner.
-
Dirac LiveÂŽ Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Upgrade subwoofer performance with Dirac LiveÂŽ Bass Control.
Specifications and Downloads
-
Number of Power Amps - 13
Auto Speaker Setup by Microphone - Audyssey MultEQ XT32
Front Display - 2 Lines FLD
GUI Languages - 9
Power Output
150 watts per channel - (8 ohm, 20Hz - 20kHz,0.05% 2ch Drive)
190 watts per channel - (6 ohm, 1kHz, 0.7% 2ch Drive)
190 watts per channel - (6 ohm, 1kHz, 1% 1ch Drive)
210 watts per channel - (6 ohm, 1kHz,10% 1ch Drive)
-
System Remote Control - RC-1261
Power Consumption in W - 900W
Power Consumption No-Sound (ECO on/off) in W - 70W/125W
Standby Consumption in W - 0.1W
CEC Standby Consumption in W - 0.5W
Network Standby Consumption in W - Less than 2.0W
Maximum Dimensions, Antenna, Horizontal: (W Ã D Ã H) in mm - 434 Ã 482 Ã 195
Maximum Dimensions, Antenna, Vertical: (W Ã D Ã H) in mm - 434 Ã 482 Ã 259
Maximum Dimensions, w/o Antenna: (W Ã D Ã H) in mm - 434 Ã 472 Ã 195
Weight in kg - 23.6 kg
-

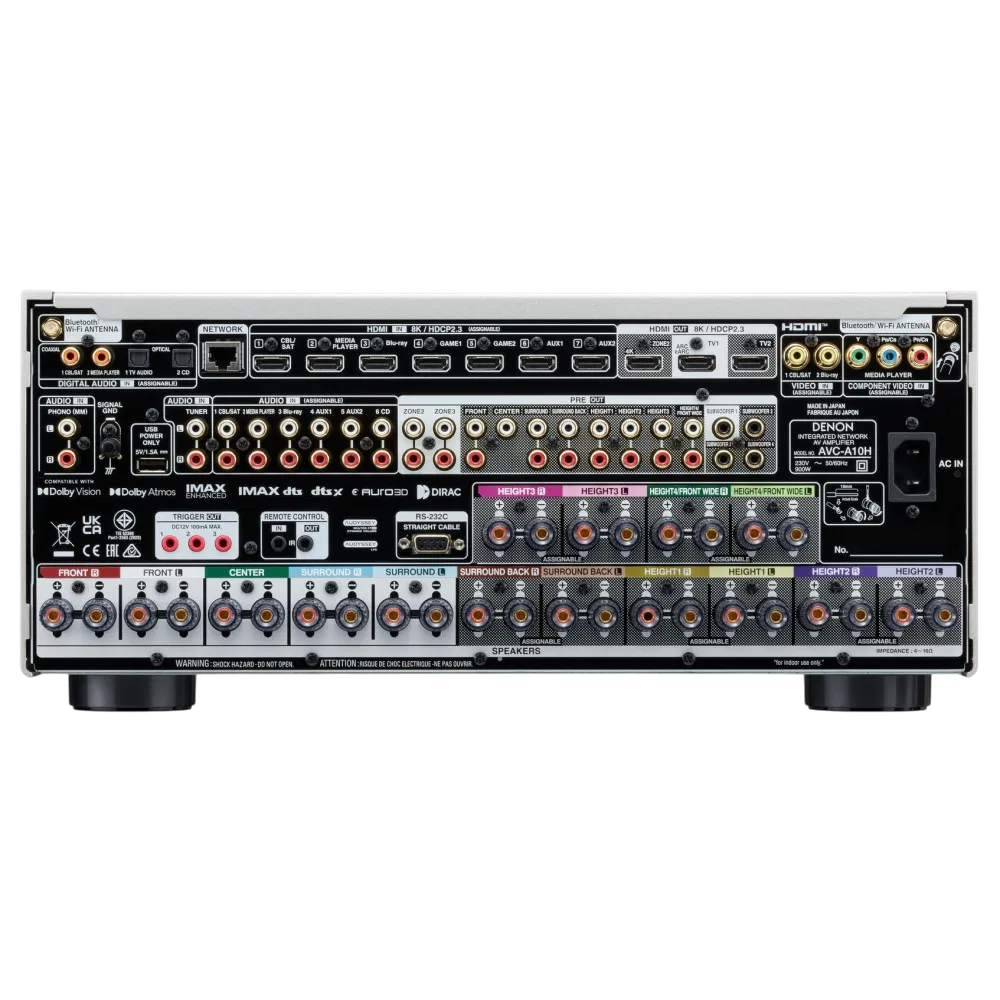

HDMI In/Out - 7/3
Analog In/Out - 7+1 / 0
Phono (MM) In - Yes
Digital In: Optical / Coaxial - 2 / 2
Multi-Room Out: Analog / Digital - 2 / 0
Multichannel Pre-Out - Yes (15.4)
Subwoofer Out - 4 (independent)
-
Number of Speaker Terminals - 15
Speaker A/B - Assignable
Bi-Amp Drive - Assignable
Multi-Room Speaker Terminal - Assignable
