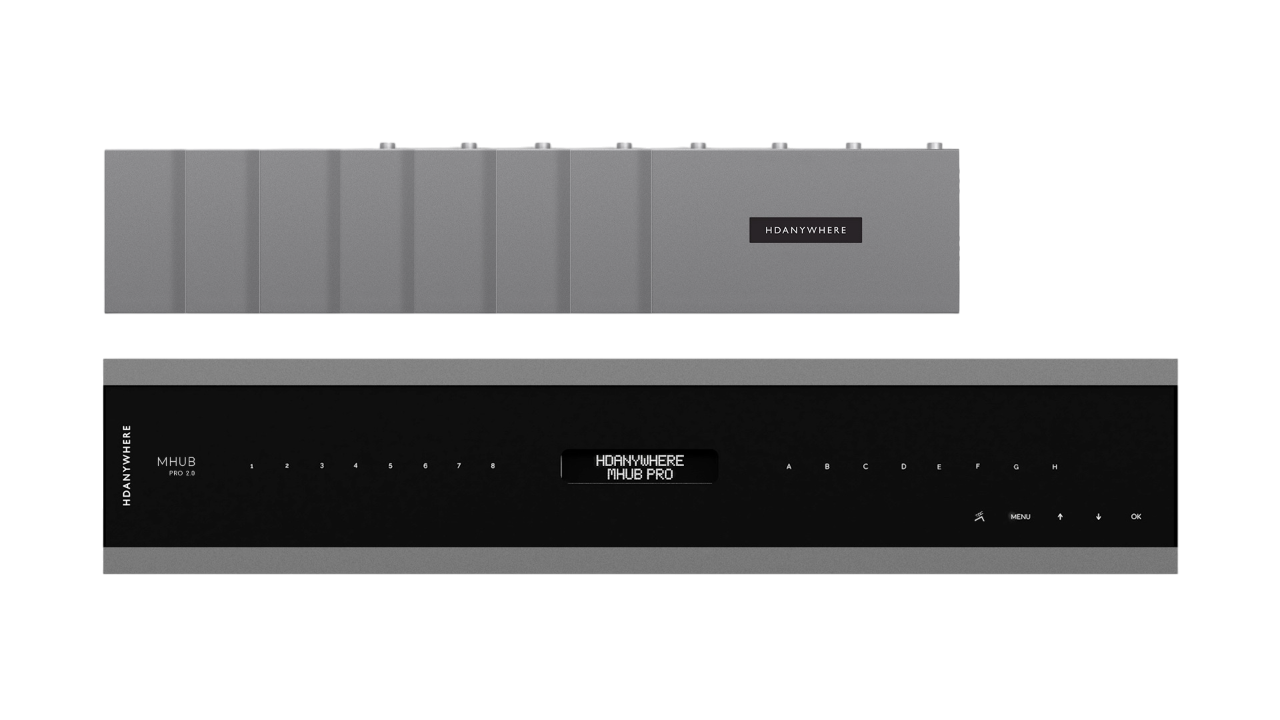

HDA MHUB PRO 2.0 (8x8)

ÂŖ5,400.00 ÂŖ8,799.00

Designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 100 metres away over a single Cat6 cable with no latency.

Designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 100 metres away over a single Cat6 cable with no latency.

HDA uControl Zone Processor (ZP5)
HDA uControl Zone Processor (ZP5)
ÂŖ200.00

Features

  • 18G (600MHz) HDMIÂŽ 2.0 and HDCP 2.2 compatible

  • Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range(HDR) all current formats inc. Dolby VisionÂŽ

  • Supports all current audio formats including Dolby AtmosÂŽ and DTS:XÂŽ

  • HDBaseT 2.0 with PoH

  • Internal video scaling (4K>1080p on every output)

  • Internal 20x8 audio matrix switcher with flexible grabbing audio (source or display HDMIARC) via digi coax, or audio downmix via stereo jack

  • Internal uControl IO expander universal controller

  • Control paths via TCP/IP, two-way IR and RS232

  • Backlit fade in/out touch panel controls

  • App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)

  • 2x integrated 10/100 Ethernet LAN connections at RX

  • Sold as a complete install package, with all receivers, IR cables and mounting kit included.





Specification

  • 19”/2U aluminium rack-mountable unit

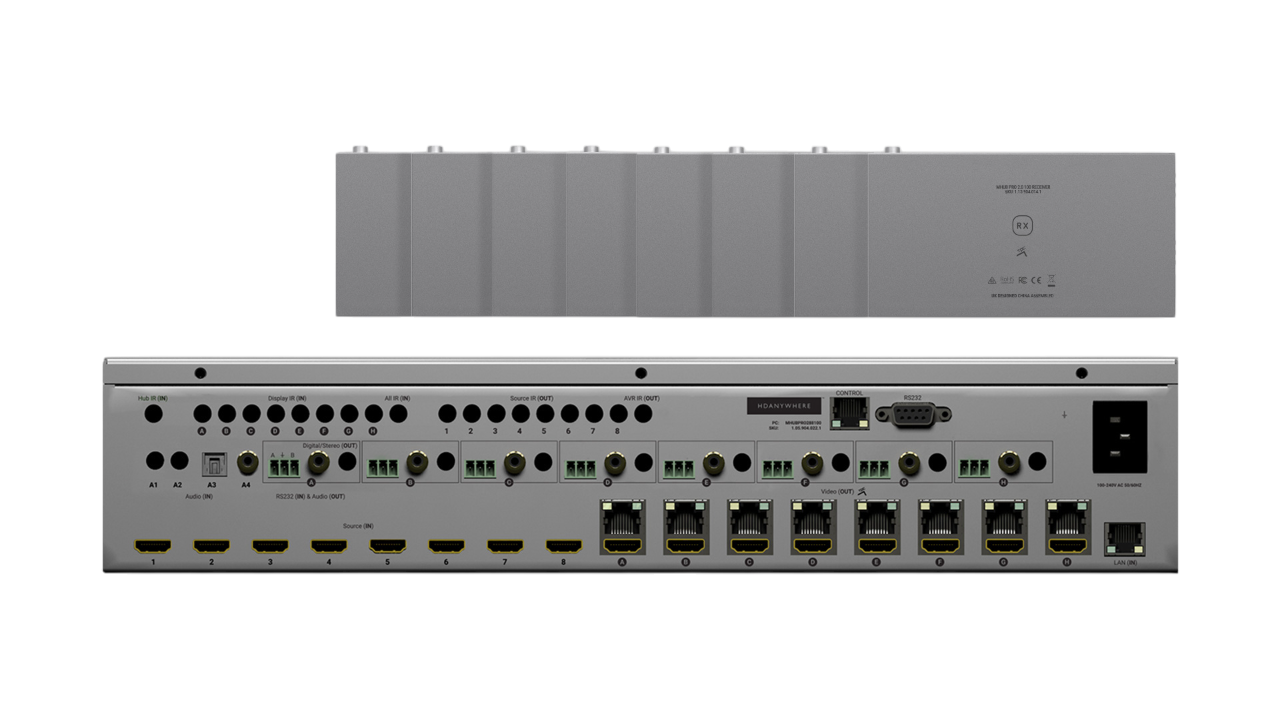

  • 8 HDMI x 8 RJ45 HDBaseT + 8 mirrored HDMI

  • HDBaseT 2.0 (VS2000) + TPC

  • HDMI backplane 594MHz clock / 18Gbps data
    HDBT 340MHz clock / 10.2Gbps data

  • Âą 8kV (air-gap discharge) Âą 4kV (contact discharge)

  • Web GUI, IR, TCP/IP, RS232, App, Alexa

  • Full control over sources, matrix hub & display functions.

  • Hub 4600g
    RX 192g

  • 8500g

  • Hub 440 / 380 / 90mm (without feet)
    RX 163 / 94 / 19mm

  • 32°F to 104°F (0°C to 40°C)

  • -4°F to 140°F (-20°C to 60°C)

  • 20~90 % RH (non-condensing)

  • 30W (max) 0.5W (standby)

  • 3/4-year guarantee (Cloud registration required)
