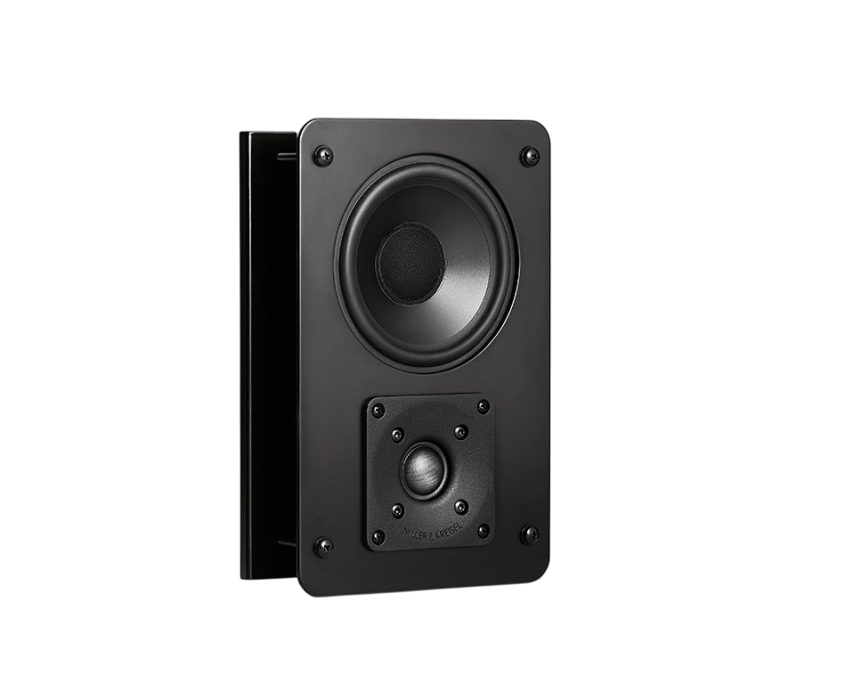

The versatile IW85 is superb in two-channel or surround applications and can be combined with any M&K Sound speakers for a seamless sonic timber match.
The IW85 speaker features a 1” high frequency driver and a 5.25” polypropylene cone woofer to deliver a 85Hz to 20kHz frequency response and 88dB sensitivity to ensure hours of high impact and dynamic listening pleasure around the home or in a dedicated AV room.
This speaker incorporates a second order phase focused crossover frequency of 1.6kHz supporting a smooth and imperceptible transition between tweeter and woofer. This speaker delivers extraordinary low end detail independently and can successfully be paired with any of M&K Sound’s powerful and articulate subwoofers.
M&K’s architectural frameless, low profile and metal mesh front grilles are a subtly elegant and virtually invisible element in any living space and the grilles can be painted to match the surrounding surface. For vibration free mounting, the M&K In Wall Series grilles are fitted with multiple rubber coated neodymium magnets with more than enough strength for safe in-ceiling use.
Specifications
Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ohm
Recommended Amplifier Power . . . . . . . . . . . . . . 25 – 200W
Bass/Midrange . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.25” polypropylene
High Frequency Driver. . . . . . . . . . . . . . . . . . . . . .1” soft fabric dome
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . 85 Hz – 20 kHz, ±3dB
Sensitivity .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 dB, 2.83V/1m:
Grille Dimensions (HxW) . . . . . . . . . . . . . . . . . . . 10.62 x 6.88”, 270 x 175 mm
Baffle Dimensions (HxW) . . . . . . . . . . . . . . . . . . . 10.39 x 6.65”, 264 x 169 mm
Wall Cutout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.4” x 6”, 239 x 152 mm
Mounting Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . 3.67”, 93 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.1 kg / 9 lbs.
