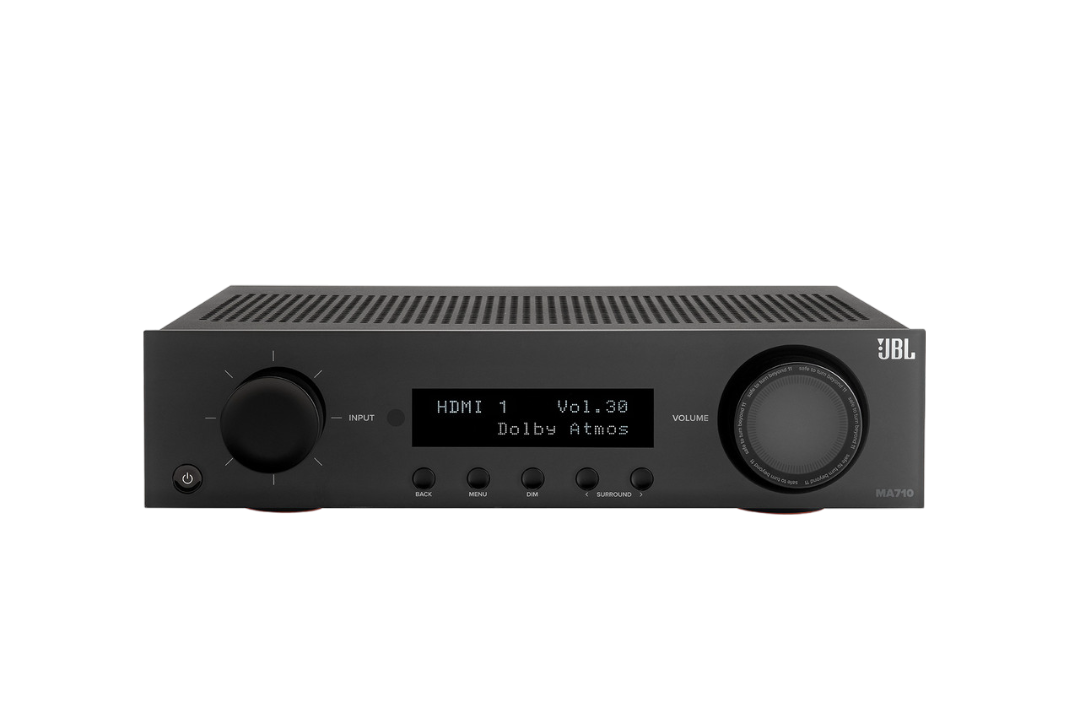

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels
-
HDMI eARC - Yes
HDMI Audio Return Channel - Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) - 3
HDMI 2.1 enhanced gaming features - Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision - Yes , Yes
File format - File format up to 48 kHz / 320kbps WMA
MP3 / MPEG-4 AAC
Pure Analog - Yes
EZ Set EQ - Yes
Front channel bi-amp - Yes
Digital signal processing - up to 24-bit/192kHz
Mains voltage - 110 – 240V, 50–60Hz
Max. power consumption - 500W
Standby power consumption - <0.5W
-
Channels - 7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) - 110W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) - 110 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) - 160 W RMS
-
Dimensions incl. feet and speaker terminals (H x W x D) - 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight - 13.8lb (6.3kg)
-
HDMI Input/Output - 6/ 1
Wi-Fi - Yes (2.4/5GHz)
Bluetooth receiver - Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input - 1 Coax, 1 Optical, 1 USB
Stereo analog input - 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA) - Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet - RJ45 Gigabit, WiFi Onboard
-
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.
