High power handling, sensitivity, SPL

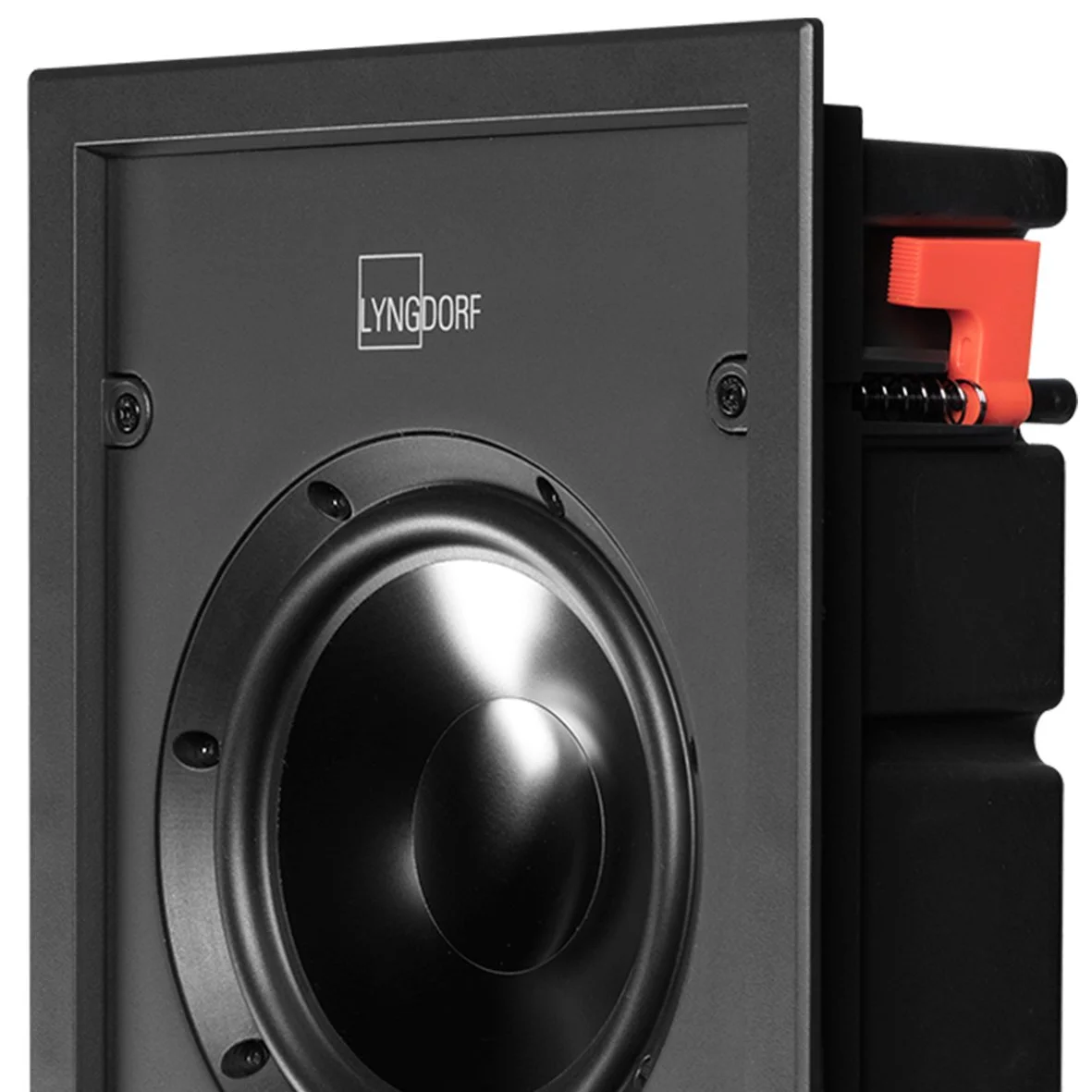

The D-60 has been designed as a high-performance in-wall speaker to be used for front channels with additional woofers as well as for surround channels. It offers the Discreet series’ highest power handling, sensitivity, and achievable sound pressure level. The D-60 covers frequencies from 22 kHz down to 80 Hz (-3dB) and is intended to be used with additional woofers for the LFE and bass, for example the Lyngdorf BW-20 or DW-1. The D-60 is the ideal choice for high-performance home cinemas and larger rooms, as well as for completing the outstanding Lyngdorf LS-1000 line source speakers with surround speakers on a similar performance level.
Powerful soft-dome tweeter and new midrange driver
The D-60 is equipped with a more powerful soft dome tweeter compared to the D-500 in-wall speaker, featuring a much stronger magnet. The two 18cm / 7-inch aluminum midrange drivers are equipped with vented magnets and vented die-cast baskets, while the inverted surround allows a flat speaker front and space-saving cabinet depth. With the D-60, one no longer has to choose between high-performance and a discreet physical presence.
Pre-mounted loudspeaker enclosure
The D-60 comes with its own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall. The enclosure is made from high quality mdf, increasing rigidity and preventing material resonance.
Highly efficient and powerful drive units
The D-60 is equipped with a more powerful soft dome tweeter compared to the D-500, featuring a much stronger magnet. The two midrange drivers are placed above an below the tweeter to achieve the ideal sound beam in the room. The drivers are equipped with vented magnets and vented die-cast baskets, while the inverted surround allows a flat speaker front and space-saving cabinet depth.
Lyngdorf Audio speaker design and drive-units
The midrange drivers and tweeters are based on the known drive-units used in other Lyngdorf loudspeakers customized for each model, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.
-
Description: Custom installation 2 way speaker
Tweeter: 28 mm / 1” soft dome
Midrange/woofer: 2 x 180 mm, 38 mm voice coil, aluminum cone, vented magnet, die-cast vented basket
Enclosure: Closed MDF cabinet
Frequency range: 80 – 22.000 Hz (-3 dB)
Nominal Impedance: 4 Ohm
Sensitivity: 92 dB (2.83V/1m)Power handling: 200 W (IEC)
Maximum SPL: 112 dB
Crossover point: 2,5 kHz
Connections: Binding posts
Mounting: In-wall
Dimensions with grill (W x H x D): 388 x 646 x 104 mm / 25.4 x 15.3 x 4.1 inches
Cut-out dimensions (W x H x D): 360 x 618 x 100 mm / 24.3 x 14.2 x 3.9 inches
Weight: 11,4 kg / 25.1 lb
Finish: Matte black, white grill
