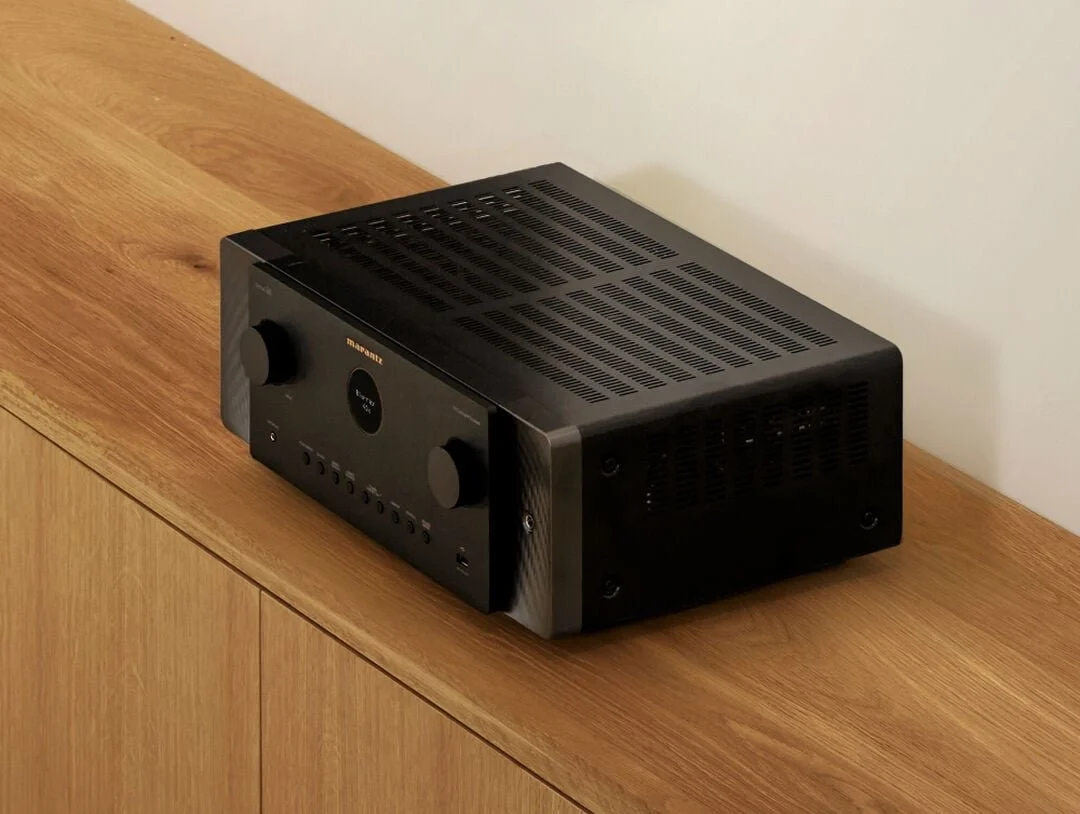

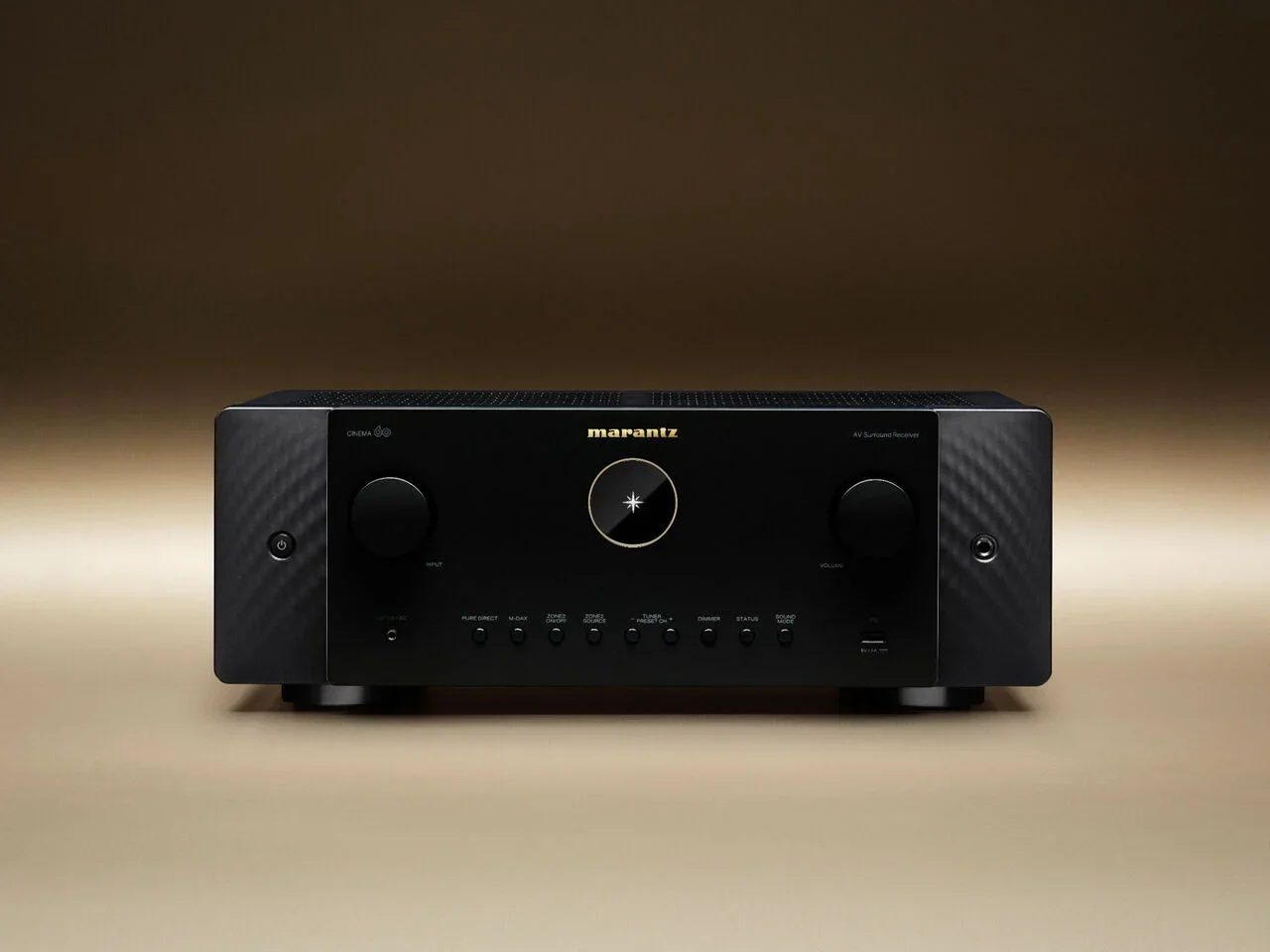

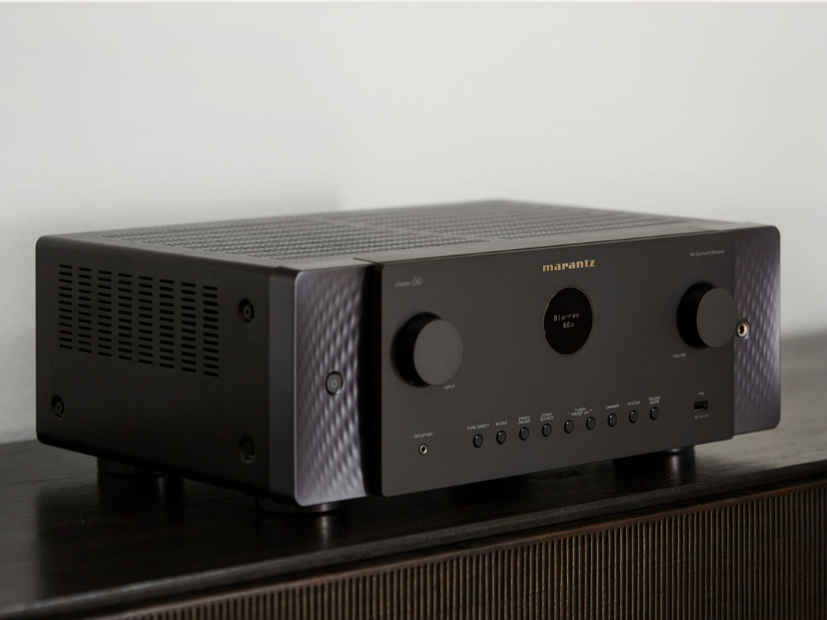

Marantz Cinema 60

ÂŖ1,099.00

7.2ch 8K AV Receiver

CINEMA 60 raises the standard of foundational luxury home theater with its timeless design and wide array of immersive audio formats. Marantz Sound Master tuned, and engineered with proprietary technologies, this AV receiver delivers warm, rich, and spacious sound.

7.2ch 8K AV Receiver

CINEMA 60 raises the standard of foundational luxury home theater with its timeless design and wide array of immersive audio formats. Marantz Sound Master tuned, and engineered with proprietary technologies, this AV receiver delivers warm, rich, and spacious sound.

  • A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

  • Immersive spaciousness, warm and rich tone, extraordinary detail, and lifelike dynamics are legendary hallmarks of Marantz sound.

  • The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

  • The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

CINEMA 60

  • Artisanal Design

  • 7.2 Channels

  • 100 Watts per Channel

  • 6 HDMI Inputs plus eARC

  • 8K & Dolby Atmos

  • HEOS Built-in



Owners Manual
User Guide
Quick Start Guide

Details & Specifications

    • Number of Powered Channels - 7

    • Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) - 100 W

    • Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -

    • Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 140 W

    • Power Output (6 ohm, 1 kHz, 10% 1ch Drive) - 200 W

    • 70% Guarantee - Yes

    • Discrete Power Amplifier - Yes

    • Amplifier Topology - Class A/B

    • Current Feedback Topology - Yes

    • Bi-Amp Drive - assignable

    • DTS - DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

    • Dolby - Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround

    • Other

    • Max Number of Processing (Preamp) Channels - 7.1

    • Composite In / Out - 0/0

    • Component In / Out - 0/0

    • HDMI In / Out - 6 / 2

    • Multi-Room Video Out via HDMI - No

    • Analog In / Fixed Level Out - 4 in / 0 out

    • Phono (MM) In - Yes

    • Digital In: Optical / Coaxial - 2 / 2

    • Multi-Room Out: analog / digital - 1 / 0

    • Multichannel Preamp Out - 7.2

    • Subwoofer Out - 2

    • 7.1 multichannel input - No

    • Number of Speaker Terminals - 7

    • Speaker A / B - assignable

    • Multi-Room Speaker Terminal - assignable

    • Front Inputs - USB-A

    • USB Audio / Made for iPod / Made for iPhone - Yes / No / No

    • AM/FM Tuner - Yes

    • Total HDMI Inputs / No. Support 8K - 6 / 3

    • HDCP2.3 support - Yes

    • HDMI Outputs: Main / Zone - 2 / 0

    • Analog to HDMI Video Conversion - No

    • HDMI Upscaling - 1080P/4K to 8K

    • Max resolution @ framerate - 8K/60Hz, 4K/120Hz

    • Audio Return Channel - ARC, eARC

    • Video Dynamic Range - HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

    • ALLM (Auto Low Latency Mode) Pass through for gaming - Yes

    • Variable Refresh Rate / Quick Frame Transport - Yes / Yes

    • HDMI Pass-Through in Standby Mode - Yes

    • CEC - Yes

    • DSD Audio over HDMI - No

    • Auto LipSync - Yes

    • Copper Plated Chassis - No

    • Toroidal Power Supply Transformer - No

    • Hyper Dynamic Amplifier Modules (HDAM) (List version) - Yes

    • Pure Direct Mode - Yes

    • Gold Plated RCA Terminals - No

    • Clock Jitter Reducer - No

    • Audyssey - MultEQ XT

    • Audyssey Dynamic EQ / Dynamic Volume - Yes / Yes

    • Audyssey LFC - No

    • Dirac Live Support - No

    • Variable Cross Over - Yes

    • Optimized Bass Redirection - Yes

    • Bass Sync - No

    • Lossy Formats - MP3 / WMA / AAC

    • Lossless formats - FLAC HD 192/24 / WAV 192/24 / ALAC 192/24

    • DSD Audio - 2.8 MHz / 5.6MHz

    • Gapless Playback - FLAC, WAV ,ALAC ,DSD

    • Compressed Audio Enhancer: MDAX2 - Yes

    • Network Audio Sharing - Yes

    • HEOS Multi-room and Streaming - Yes

    • AirPlay Audio Streaming - AirPlay 2

    • Internet Radio - TuneIn

    • Spotify* - Spotify Connect

    • Pandora - No

    • SiriusXM - Yes

    • Other Streaming Services * - Amazon Music HD/
      Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix

    • Roon tested - Yes

    • Ethernet Ports - Yes

    • Wi-Fi (include version / band) - Yes

    • Bluetooth (Include version) - Yes

    • Bluetooth Re-transmit for Bluetooth headphones - Yes

    • Voice Assistant Compatibility - Alexa / Google Voice Assistant / Apple HomePod

    • App for Smart Phones & Tablets (iOS & Android) - Marantz AVR Remote App, HEOS

    • HEOS Multi-Room Integrated - Yes

    • HEOS Link Compatibility: IR/ IP - Yes / Yes

    • Multi-Room zones - 2

    • Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - 2 Ch / 2Ch / Yes / Yes

    • Zone Audio Output: Speaker / Preout - Yes / Yes

    • Zone HDMI Output from HDMI Source - No

    • Control Connectivity - IP Control / RS232 Control / Web Control / App Control

    • IR Flasher In - Yes

    • Marantz Remote Bus - Yes

    • DC Trigger Output - 1

    • HDMI Diagnostics - Yes

    • Front Display - port hole OLED

    • GUI Languages - 3

    • Setup Assistant - Yes

    • Smart Select on Remote - Yes

    • Firmware Update by Network / USB - Yes / Yes

    • ECO Mode - Yes

    • Auto Power off - Yes

    • Sleep Timer - Yes

    • Availabe colours - Black

    • Metal Front Panel - No

    • System Remote Control - RC049SR

    • Power Consumption in W - 650

    • Power Consumption No-Sound (ECO on/off) in W - 45/ 75

    • Standby Consumption in W - 0.2

    • CEC Standby Consumption in W - 0.5

    • Network Standby Consumption in W - Less than 2.0

    • Maximum Dimensions
      Antenna:Horizontal:(W x D x H) in mm       - 442 x 354 x 165
      Antenna:Vertical :(W x D x H) in mm - ( 442 x 354 x 235 )
      W/o Antenna:(W x D x H) in mm - 【 442 x 343 x 165 】

    • Weight in kg - 10.9

    • What's in the box - Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
