British High-Fidelity Architectural Sound Redefined

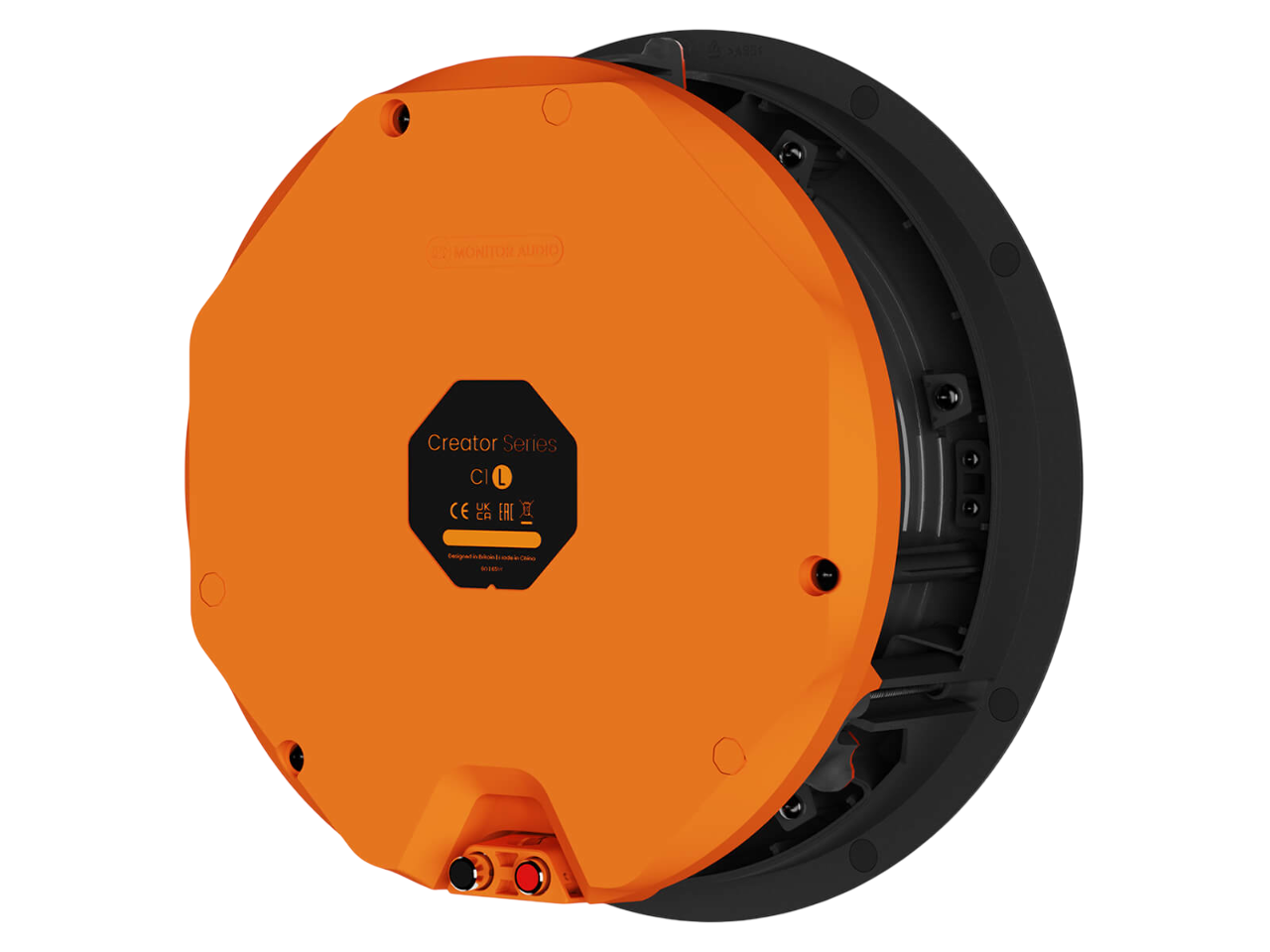

This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations where product simplicity and solid acoustic performance are required. It is a two-way model featuring a C-CAM mid-bass driver and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1.25" C-CAM tweeter with UD Waveguide I 1 x 9" C-CAM mid-bass driver | Patented Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
-
System Format
2–Way
Channels
1
Frequency Response, Installed (-6dB)
30 Hz – 25 kHz
Nominal Impedance
8 ohm
Minimum Impedance (20Hz to 20kHz)
6.4 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
75 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
40 – 150 W
Drive Unit Complement
1 x 9" (229 mm) C-CAM mid-bass driver
1 x 1.25" (32 mm) C-CAM tweeterCrossover Frequency
LF/HF: 2 kHz
Mounting Depth
99 mm (37/8")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16)"
Weight (each)
2.5 kg (5 lb 8 oz)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matte black & Orange
Sold As
Single Unit with CL-Round Grille (white)
Warranty
Lifetime
